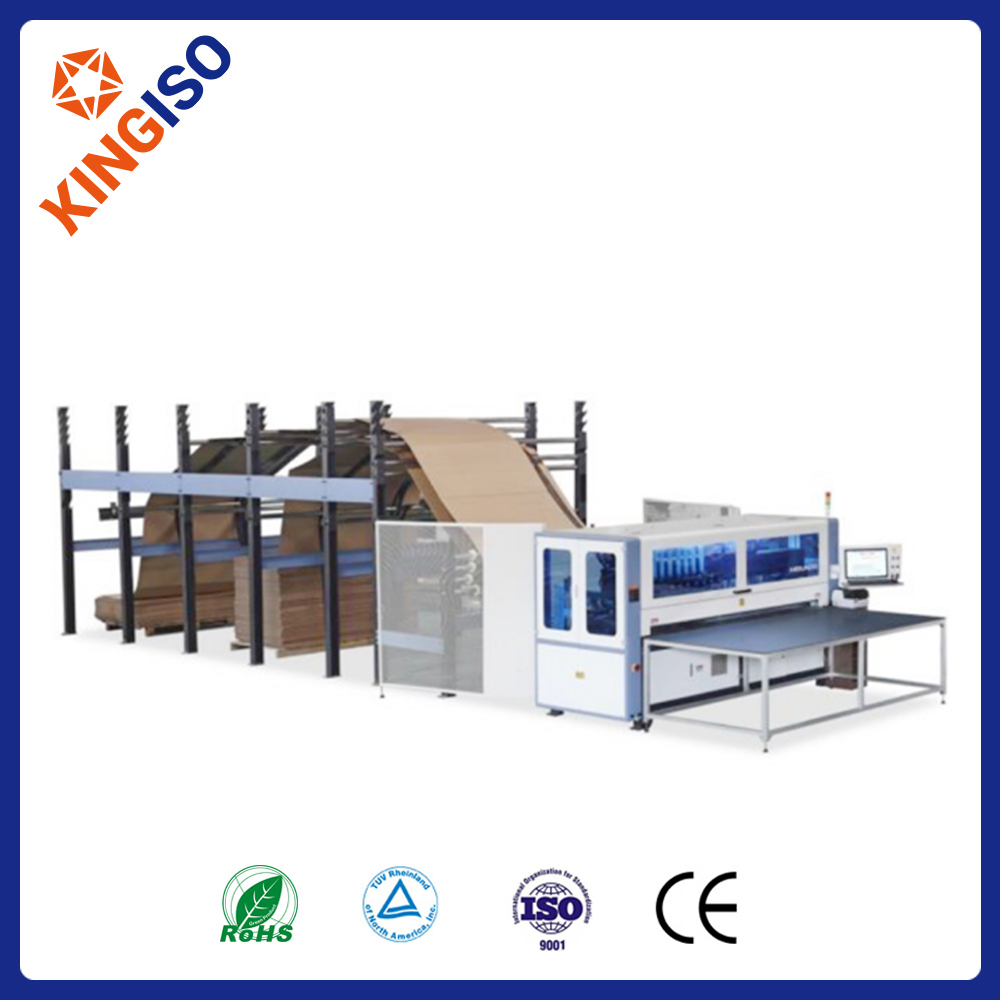

KICC-160D CNC Custom Carton Cutting Machine

  • Technical Parameter:Carton Cutting Size Carton width200-650mmCarton length400-2500mmCarton thic
  • Hotline: 86-532-80999854
  • Fax: 86-532-68067870
  • Email:mike@kingiso.com
  • Detail

  • Contact Us

Technical Parameter

Carton Cutting Size



Carton width

200-650mm

Carton length

400-2500mm

Carton thickness

30-480mm

Corrugated paper specifications


Single-layer corrugated / double-layer corrugated

      thickness/2.0-5.0mm

Corrugated paper in raw material area


Corrugated paper stacking quantity

1-4pile

Corrugated paper stacking range

800-1600/mm

Cutting Speed


Max horizontal cutting speed

90m/min

Max vertical cutting speed

90m/min

Servo motor configuration


Horizontal cutter motor power

400W

Vertical cutter motor power

400Wx6

Feeding motor power

3KW

Material selection motor power

750W

Total power

6.8KW

Production Efficiency

4-8pcs/min

Air pressure

0.5-0.6MPa

Overall dimension

12000x2700x3000mm

weight

2300kg

 Main parts:

1. The fuselage is solid and heavy structural steel, which is annealed to relieve stress.

The rack and pinion are made of grinding-grade high-precision materials, and are hardened after heat treatment.

2. Relay: Schneider;

3. Sensor: OMRON / AirTAC;

4. Low-voltage electrical and pneumatic components: Schneider;

5. Servo motor: High-precision Haichuang absolute servo motor (Avoid turning back to the origin);

6. Inverter: Taiwan Delta;

7, linear guide, ball screw: Taiwan HIWIN;

8. Gear rack: Taiwan JT.

Feature

1. The disc flat knife replaces the saw blade, which has a long service life;

2. Indentation cutting without dust, no need for dust collection system;

3. The cut of corrugated paper is smooth after cutting;

4. Constant gap ensures no contact between the cutter and the all-steel backing plate, and the mission life is long

5. Horizontal-cutting knife:

Horizontal cutter shaft: 1 shaft;

Horizontal cutting knife: 1 standard dashed cross-cutting knife; 1 standard cutting knife

Vertical knife:

Vertical knife shaft: 1 shaft;

Vertical knife: 6 standard dotted crimping blades; 6 standard cutting blades, of which 1 is a fixed trimming blade and the other 5 are servo-controlled6. Corrugated paper continuous and efficient processing.

Attached tool layout:

International standard carton



REMARK:



Standard processing of the following 2 carton types



Operation System

1.Windows system

2. Professional operating system for packaging line;

3. (Higerman / PA system) German technology;

4.19-inch high-definition capacitive screen;



Device data read mode:

1. Comprehensive management information of the software docking factory (such as two-dimensional code, bar code);

2. The software receives the data from the measurement station;

3. Read quasi-formatted XLS files;

4. The operator inputs the data directly.

-Soft key functions

Appearance characteristics:

The design looks simple and generous, and the internal combination is compact and reasonable.
